XGBoost Regressor

XGBoost Regressor #

The XGBoost Regressor is a machine learning algorithm used for predicting continuous values (regression tasks). It is based on gradient boosting but optimized with additional tricks for speed, scalability, and regularization.

It combines:

Ensemble learning → multiple weak learners (decision trees)
Gradient boosting → trees are added sequentially, correcting previous errors
Second-order optimization → uses both gradient & Hessian for better approximation
Regularization → prevents overfitting

Mathematical Formulation #

We want to predict a continuous target \(y\) from input \(x\).

1. Prediction function:#

\[ \hat{y}_i = \sum_{t=1}^T f_t(x_i), \quad f_t \in \mathcal{F} \]

\(f_t\) = regression tree at step \(t\)
\(\mathcal{F}\) = space of possible regression trees

2. Objective function #

\[ \text{Obj} = \sum_{i=1}^n L(y_i, \hat{y}_i) + \sum_{t=1}^T \Omega(f_t) \]

Loss function \(L(y_i, \hat{y}_i)\): measures prediction error
- Common: Mean Squared Error (MSE), MAE, Huber loss.
Regularization term \(\Omega(f_t)\): penalizes complexity of trees

\[ \Omega(f_t) = \gamma T + \frac{1}{2}\lambda \sum_j w_j^2 \]
- \(T\) = number of leaves in the tree
- \(w_j\) = leaf weight
- \(\gamma, \lambda\) = regularization parameters

3. Tree building using Taylor expansion #

To minimize the objective, XGBoost expands the loss function up to second-order:

\[ \text{Obj}^{(t)} \approx \sum_{i=1}^n \left[ g_i f_t(x_i) + \frac{1}{2} h_i f_t(x_i)^2 \right] + \Omega(f_t) \]

where:

\(g_i = \frac{\partial L(y_i, \hat{y}_i)}{\partial \hat{y}_i}\) (gradient)
\(h_i = \frac{\partial^2 L(y_i, \hat{y}_i)}{\partial \hat{y}_i^2}\) (Hessian)

4. Leaf weight solution #

For a leaf \(j\), the optimal weight is:

\[ w_j^* = -\frac{\sum_{i \in I_j} g_i}{\sum_{i \in I_j} h_i + \lambda} \]

\(I_j\) = set of samples in leaf \(j\).

5. Split Gain #

When deciding to split, compute Gain:

\[ \text{Gain} = \frac{1}{2}\left(\frac{G_L^2}{H_L+\lambda} + \frac{G_R^2}{H_R+\lambda} - \frac{(G_L+G_R)^2}{H_L+H_R+\lambda}\right) - \gamma \]

Split if Gain > 0 (or above threshold).

Workflow of XGBRegressor #

Input data → convert to DMatrix (efficient internal format).
Initialize prediction with mean of \(y\).
For each boosting round:
- Compute gradients & Hessians of loss function.
- Build a regression tree using Gain formula.
- Assign leaf weights using closed-form solution.
- Update predictions:

  \[ \hat{y}^{(t)} = \hat{y}^{(t-1)} + \eta f_t(x) \]

  where \(\eta\) = learning rate.
Apply regularization (L1 & L2 penalties).
Repeat until max trees or early stopping.

Key Hyperparameters in XGBRegressor #

Learning rate (eta) → step size (default 0.3).
n_estimators → number of boosting rounds.
max_depth → depth of each tree.
subsample → % of training data used per tree.
colsample_bytree → % of features used per tree.
reg_alpha (L1) & reg_lambda (L2) → regularization.
gamma → minimum loss reduction required to split.
min_child_weight → minimum sum of Hessians in a leaf.

Use Cases #

Predicting house prices 🏠
Forecasting stock prices 📈
Modeling customer spending 💳
Any tabular regression task with non-linear interactions

Intuition: XGBRegressor keeps adding small trees that fix residual errors from the previous trees, using gradients + curvature info. Regularization ensures the model doesn’t overfit.

!pip install xgboost

Collecting xgboost
  Obtaining dependency information for xgboost from https://files.pythonhosted.org/packages/00/5a/f43bad68b31269a72bdd66102732ea4473e98f421ee9f71379e35dcb56f5/xgboost-3.0.5-py3-none-win_amd64.whl.metadata
  Downloading xgboost-3.0.5-py3-none-win_amd64.whl.metadata (2.1 kB)
Requirement already satisfied: numpy in c:\users\sangouda\appdata\local\programs\python\python312\lib\site-packages (from xgboost) (2.1.3)
Requirement already satisfied: scipy in c:\users\sangouda\appdata\local\programs\python\python312\lib\site-packages (from xgboost) (1.16.0)
Downloading xgboost-3.0.5-py3-none-win_amd64.whl (56.8 MB)
   ---------------------------------------- 0.0/56.8 MB ? eta -:--:--
   ---------------------------------------- 0.4/56.8 MB 9.1 MB/s eta 0:00:07
    --------------------------------------- 0.9/56.8 MB 9.6 MB/s eta 0:00:06
   - -------------------------------------- 1.5/56.8 MB 10.3 MB/s eta 0:00:06
   - -------------------------------------- 2.1/56.8 MB 11.3 MB/s eta 0:00:05
   - -------------------------------------- 2.8/56.8 MB 11.9 MB/s eta 0:00:05
   -- ------------------------------------- 3.4/56.8 MB 12.9 MB/s eta 0:00:05
   -- ------------------------------------- 4.1/56.8 MB 13.2 MB/s eta 0:00:04
   --- ------------------------------------ 4.7/56.8 MB 13.0 MB/s eta 0:00:05
   --- ------------------------------------ 5.4/56.8 MB 13.4 MB/s eta 0:00:04
   ---- ----------------------------------- 6.2/56.8 MB 13.6 MB/s eta 0:00:04
   ---- ----------------------------------- 7.0/56.8 MB 14.0 MB/s eta 0:00:04
   ----- ---------------------------------- 7.8/56.8 MB 14.6 MB/s eta 0:00:04
   ------ --------------------------------- 8.5/56.8 MB 14.4 MB/s eta 0:00:04
   ------ --------------------------------- 9.1/56.8 MB 14.2 MB/s eta 0:00:04
   ------ --------------------------------- 9.8/56.8 MB 14.3 MB/s eta 0:00:04
   ------- -------------------------------- 10.4/56.8 MB 14.6 MB/s eta 0:00:04
   -------- ------------------------------- 11.5/56.8 MB 16.0 MB/s eta 0:00:03
   -------- ------------------------------- 12.2/56.8 MB 16.0 MB/s eta 0:00:03
   --------- ------------------------------ 13.1/56.8 MB 16.4 MB/s eta 0:00:03
   --------- ------------------------------ 13.9/56.8 MB 16.4 MB/s eta 0:00:03
   ---------- ----------------------------- 14.4/56.8 MB 16.4 MB/s eta 0:00:03
   ---------- ----------------------------- 15.5/56.8 MB 16.8 MB/s eta 0:00:03
   ----------- ---------------------------- 16.7/56.8 MB 16.8 MB/s eta 0:00:03
   ------------ --------------------------- 17.8/56.8 MB 17.2 MB/s eta 0:00:03
   ------------- -------------------------- 18.5/56.8 MB 16.8 MB/s eta 0:00:03
   ------------- -------------------------- 19.3/56.8 MB 17.7 MB/s eta 0:00:03
   ------------- -------------------------- 19.9/56.8 MB 17.2 MB/s eta 0:00:03
   -------------- ------------------------- 20.6/56.8 MB 17.2 MB/s eta 0:00:03
   -------------- ------------------------- 21.3/56.8 MB 17.3 MB/s eta 0:00:03
   --------------- ------------------------ 22.3/56.8 MB 16.8 MB/s eta 0:00:03
   ---------------- ----------------------- 23.0/56.8 MB 17.2 MB/s eta 0:00:02
   ---------------- ----------------------- 23.9/56.8 MB 17.2 MB/s eta 0:00:02
   ----------------- ---------------------- 24.8/56.8 MB 17.7 MB/s eta 0:00:02
   ----------------- ---------------------- 25.5/56.8 MB 17.7 MB/s eta 0:00:02
   ------------------ --------------------- 26.1/56.8 MB 17.7 MB/s eta 0:00:02
   ------------------ --------------------- 27.0/56.8 MB 17.3 MB/s eta 0:00:02
   ------------------- -------------------- 27.9/56.8 MB 17.3 MB/s eta 0:00:02
   ------------------- -------------------- 28.2/56.8 MB 16.4 MB/s eta 0:00:02
   -------------------- ------------------- 29.2/56.8 MB 16.0 MB/s eta 0:00:02
   --------------------- ------------------ 29.9/56.8 MB 16.0 MB/s eta 0:00:02
   --------------------- ------------------ 30.9/56.8 MB 15.6 MB/s eta 0:00:02
   ---------------------- ----------------- 31.7/56.8 MB 16.0 MB/s eta 0:00:02
   ---------------------- ----------------- 32.5/56.8 MB 15.2 MB/s eta 0:00:02
   ----------------------- ---------------- 33.2/56.8 MB 14.9 MB/s eta 0:00:02
   ----------------------- ---------------- 33.8/56.8 MB 14.2 MB/s eta 0:00:02
   ------------------------ --------------- 34.3/56.8 MB 13.6 MB/s eta 0:00:02
   ------------------------- -------------- 35.6/56.8 MB 13.4 MB/s eta 0:00:02
   ------------------------- -------------- 36.6/56.8 MB 13.9 MB/s eta 0:00:02
   -------------------------- ------------- 37.1/56.8 MB 13.4 MB/s eta 0:00:02
   -------------------------- ------------- 37.9/56.8 MB 13.1 MB/s eta 0:00:02
   --------------------------- ------------ 39.0/56.8 MB 13.6 MB/s eta 0:00:02
   ---------------------------- ----------- 39.8/56.8 MB 14.2 MB/s eta 0:00:02
   ---------------------------- ----------- 40.9/56.8 MB 14.6 MB/s eta 0:00:02
   ----------------------------- ---------- 41.6/56.8 MB 14.9 MB/s eta 0:00:02
   ----------------------------- ---------- 42.2/56.8 MB 14.6 MB/s eta 0:00:02
   ------------------------------ --------- 42.7/56.8 MB 14.6 MB/s eta 0:00:01
   ------------------------------ --------- 43.4/56.8 MB 14.9 MB/s eta 0:00:01
   ------------------------------- -------- 44.4/56.8 MB 16.0 MB/s eta 0:00:01
   ------------------------------- -------- 45.2/56.8 MB 16.8 MB/s eta 0:00:01
   -------------------------------- ------- 45.7/56.8 MB 16.0 MB/s eta 0:00:01
   -------------------------------- ------- 46.1/56.8 MB 14.6 MB/s eta 0:00:01
   -------------------------------- ------- 46.5/56.8 MB 14.2 MB/s eta 0:00:01
   --------------------------------- ------ 47.3/56.8 MB 13.9 MB/s eta 0:00:01
   --------------------------------- ------ 47.8/56.8 MB 13.4 MB/s eta 0:00:01
   --------------------------------- ------ 48.0/56.8 MB 12.8 MB/s eta 0:00:01
   ---------------------------------- ----- 48.5/56.8 MB 12.4 MB/s eta 0:00:01
   ---------------------------------- ----- 49.2/56.8 MB 11.5 MB/s eta 0:00:01
   ----------------------------------- ---- 50.2/56.8 MB 11.3 MB/s eta 0:00:01
   ----------------------------------- ---- 51.0/56.8 MB 11.3 MB/s eta 0:00:01
   ------------------------------------ --- 52.1/56.8 MB 11.5 MB/s eta 0:00:01
   ------------------------------------- -- 53.2/56.8 MB 11.7 MB/s eta 0:00:01
   ------------------------------------- -- 53.9/56.8 MB 11.5 MB/s eta 0:00:01
   -------------------------------------- - 54.5/56.8 MB 11.1 MB/s eta 0:00:01
   -------------------------------------- - 55.0/56.8 MB 11.1 MB/s eta 0:00:01
   ---------------------------------------  55.8/56.8 MB 10.9 MB/s eta 0:00:01
   ---------------------------------------  56.5/56.8 MB 11.7 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------  56.8/56.8 MB 11.9 MB/s eta 0:00:01
   ---------------------------------------- 56.8/56.8 MB 4.1 MB/s eta 0:00:00
Installing collected packages: xgboost
Successfully installed xgboost-3.0.5

[notice] A new release of pip is available: 23.2.1 -> 25.2
[notice] To update, run: python.exe -m pip install --upgrade pip

# ------------------------------
# Fixed XGBRegressor Demonstration
# ------------------------------

import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import make_regression
from sklearn.model_selection import train_test_split
from sklearn.metrics import mean_squared_error
from xgboost import XGBRegressor, plot_importance

# 1. Generate synthetic regression dataset
X, y = make_regression(n_samples=200, n_features=5, noise=15, random_state=42)

# Split into train/test
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

# 2. Train XGBRegressor
model = XGBRegressor(
    n_estimators=200,
    learning_rate=0.1,
    max_depth=3,
    subsample=0.8,
    colsample_bytree=0.8,
    reg_lambda=1,
    random_state=42
)

model.fit(X_train, y_train)

# 3. Evaluate model
y_pred = model.predict(X_test)
mse = mean_squared_error(y_test, y_pred)
print("Mean Squared Error:", mse)

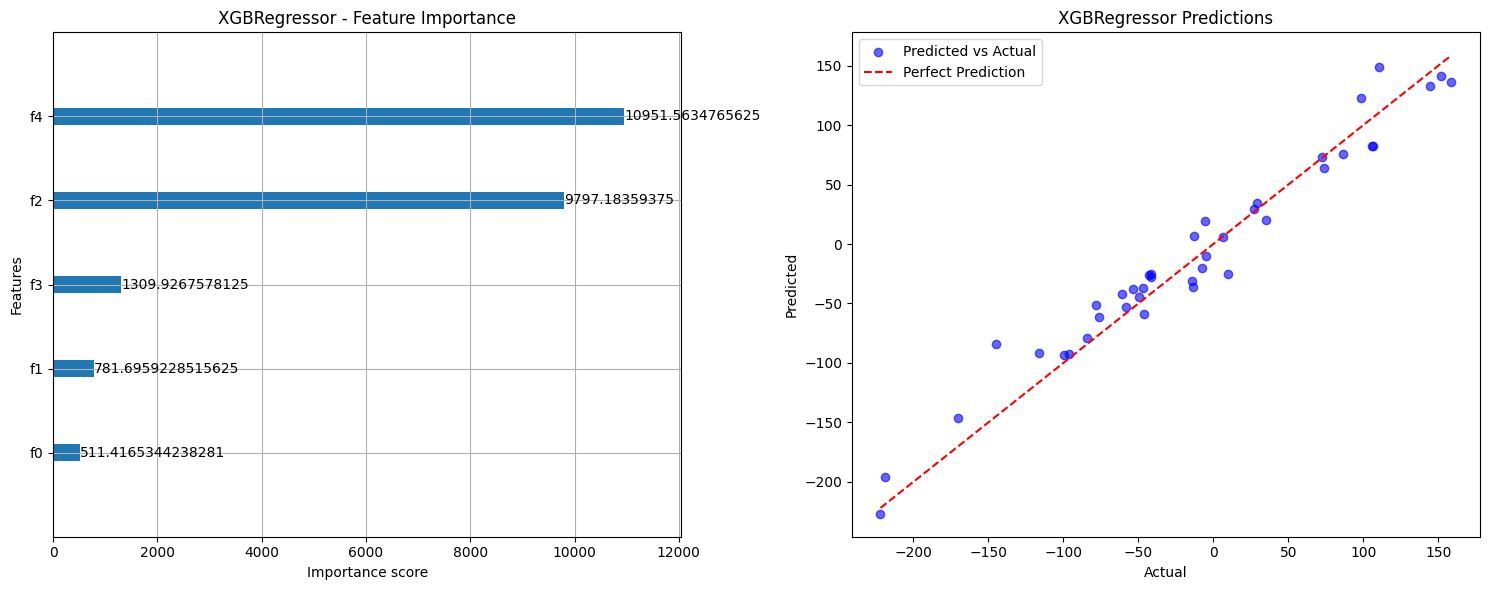

# 4 & 5. Plots
fig, axes = plt.subplots(1, 2, figsize=(15, 6))

# Feature importance
plot_importance(model, importance_type="gain", ax=axes[0])
axes[0].set_title("XGBRegressor - Feature Importance")

# Predictions vs actual
axes[1].scatter(y_test, y_pred, color="blue", alpha=0.6, label="Predicted vs Actual")
axes[1].plot([y_test.min(), y_test.max()],
             [y_test.min(), y_test.max()],
             color="red", linestyle="--", label="Perfect Prediction")
axes[1].set_xlabel("Actual")
axes[1].set_ylabel("Predicted")
axes[1].set_title("XGBRegressor Predictions")
axes[1].legend()

plt.tight_layout()
plt.show()

Mean Squared Error: 396.4587759694509

../../../_images/6194f467c8f6781f39964a0b7e77a07fdf6ac29deedcf34c1f631db5fe923cea.png

XGBoost Regressor

Contents
