Handle Overfitting

Handle Overfitting#

Define the Linear Regression Model#

We start with the standard linear regression equation:

\[ \hat{y} = X\beta + \epsilon \]

where:

  • \(X\) = input features

  • \(\beta\) = coefficients

  • \(\epsilon\) = error term

Define the Cost Function#

  • Standard regression uses Mean Squared Error (MSE):

\[ J(\beta) = \frac{1}{n} \sum_{i=1}^n (y_i - \hat{y}_i)^2 \]

  • Regularization adds a penalty term to control complexity:

  1. Ridge (L2 Regularization):

    \[ J(\beta) = \frac{1}{n} \sum_{i=1}^n (y_i - \hat{y}_i)^2 + \lambda \sum_{j=1}^p \beta_j^2 \]

    • Shrinks coefficients but never makes them exactly zero.

    • Helps with multicollinearity.

  2. Lasso (L1 Regularization):

    \[ J(\beta) = \frac{1}{n} \sum_{i=1}^n (y_i - \hat{y}_i)^2 + \lambda \sum_{j=1}^p |\beta_j| \]

    • Can shrink some coefficients exactly to zero → feature selection.

  3. Elastic Net (Combination of L1 & L2):

    \[ J(\beta) = \frac{1}{n} \sum_{i=1}^n (y_i - \hat{y}_i)^2 + \lambda \Big(\alpha \sum_{j=1}^p |\beta_j| + (1-\alpha) \sum_{j=1}^p \beta_j^2 \Big) \]

    • Balances Ridge and Lasso.

    • Good for high-dimensional datasets (p >> n).

Choose Hyperparameters#

  • \(\lambda\) (regularization strength): Controls penalty size.

  • \(\alpha\) (for Elastic Net only): Balances L1 vs L2 penalty.

Optimization#

  • Use Gradient Descent (or specialized solvers like Coordinate Descent for Lasso).

  • Iteratively update coefficients:

\[ \beta_j \leftarrow \beta_j - \eta \cdot \frac{\partial J}{\partial \beta_j} \]

where \(\eta\) is the learning rate.

Model Training#

  • Fit model on training data.

  • Coefficients shrink depending on the regularization.

    • Ridge → small but nonzero.

    • Lasso → some zero.

    • Elastic Net → mix.

Model Validation (Cross-Validation)#

  • Use k-Fold CV to tune \(\lambda\) (and \(\alpha\) for Elastic Net).

  • Select the value that minimizes validation error.

Prediction#

  • Use the final model to make predictions:

\[ \hat{y}_{test} = X_{test}\beta \]

Summary Workflow

  1. Define regression model.

  2. Add regularization term (L1, L2, or both).

  3. Choose hyperparameters (\(\lambda\), \(\alpha\)).

  4. Optimize using gradient descent/coordinate descent.

  5. Train model → shrink/zero coefficients.

  6. Validate via CV and tune parameters.

  7. Predict on new data.

import numpy as np
import matplotlib.pyplot as plt
from sklearn.linear_model import Ridge, Lasso, ElasticNet
from sklearn.model_selection import train_test_split, GridSearchCV
from sklearn.metrics import mean_squared_error

# Generate synthetic data
np.random.seed(42)
X = np.linspace(0, 10, 100).reshape(-1, 1)
y = 3 + 2 * X.flatten() + np.sin(X.flatten()) * 5 + np.random.normal(0, 2, size=X.shape[0])

# Split data
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

# Ridge Regression with cross-validation
ridge_params = {'alpha': [0.01, 0.1, 1, 10, 100]}
ridge_cv = GridSearchCV(Ridge(), ridge_params, cv=5, scoring='neg_mean_squared_error')
ridge_cv.fit(X_train, y_train)
ridge_best = ridge_cv.best_estimator_
y_ridge_pred = ridge_best.predict(X_test)

# Lasso Regression with cross-validation
lasso_params = {'alpha': [0.01, 0.1, 1, 10, 100]}
lasso_cv = GridSearchCV(Lasso(max_iter=10000), lasso_params, cv=5, scoring='neg_mean_squared_error')
lasso_cv.fit(X_train, y_train)
lasso_best = lasso_cv.best_estimator_
y_lasso_pred = lasso_best.predict(X_test)

# Elastic Net Regression with cross-validation
enet_params = {'alpha': [0.01, 0.1, 1, 10], 'l1_ratio': [0.2, 0.5, 0.8]}
enet_cv = GridSearchCV(ElasticNet(max_iter=10000), enet_params, cv=5, scoring='neg_mean_squared_error')
enet_cv.fit(X_train, y_train)
enet_best = enet_cv.best_estimator_
y_enet_pred = enet_best.predict(X_test)

# Compare results
print('Ridge best alpha:', ridge_cv.best_params_)
print('Lasso best alpha:', lasso_cv.best_params_)
print('ElasticNet best params:', enet_cv.best_params_)
print('Ridge MSE:', mean_squared_error(y_test, y_ridge_pred))
print('Lasso MSE:', mean_squared_error(y_test, y_lasso_pred))
print('ElasticNet MSE:', mean_squared_error(y_test, y_enet_pred))

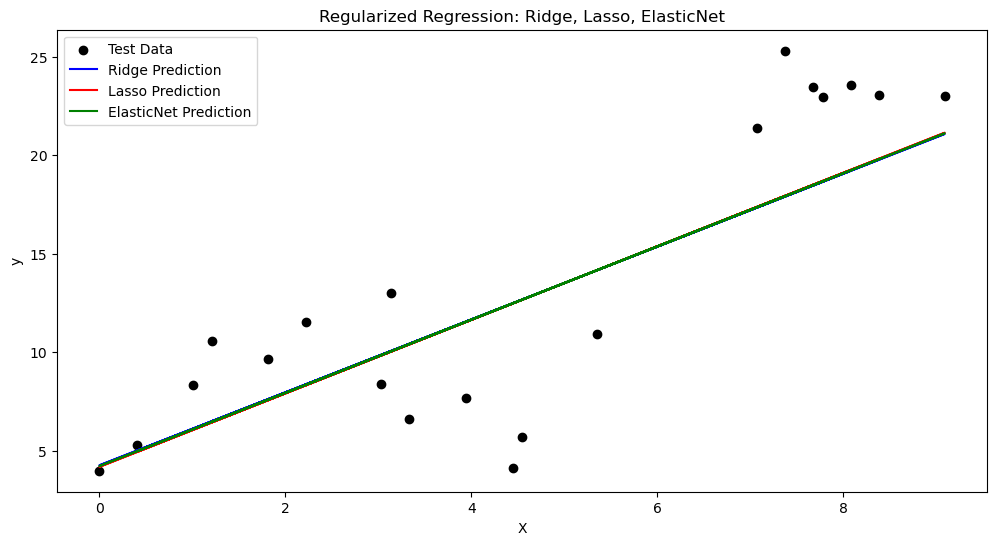

# Plot predictions
plt.figure(figsize=(12, 6))
plt.scatter(X_test, y_test, color='black', label='Test Data')
plt.plot(X_test, y_ridge_pred, color='blue', label='Ridge Prediction')
plt.plot(X_test, y_lasso_pred, color='red', label='Lasso Prediction')
plt.plot(X_test, y_enet_pred, color='green', label='ElasticNet Prediction')
plt.xlabel('X')
plt.ylabel('y')
plt.title('Regularized Regression: Ridge, Lasso, ElasticNet')
plt.legend()
plt.show()

Ridge best alpha: {'alpha': 10}
Lasso best alpha: {'alpha': 0.1}
ElasticNet best params: {'alpha': 0.1, 'l1_ratio': 0.2}
Ridge MSE: 17.672667414984858
Lasso MSE: 17.58749667387544
ElasticNet MSE: 17.631499149830997
../../../../_images/19f051d5f60f466280b24b6428df6412a9ecdad64c8f22118146f9d78b9263a3.png
